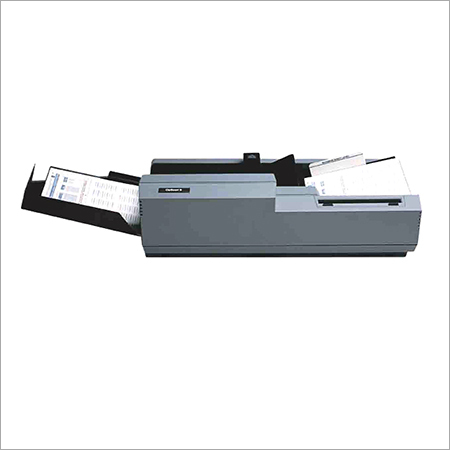

OMR Scanner

OMR Scanner
OMR Scanner
Product Code : DI-01
Product Description

We are an appreciated name of the market betrothed in offering a premium quality collection of  OMR Scanner from Gujarat, India. These products are suitable for applications in health care, educational institutions and recruitment purposes. This opscan 6 OMR scanner needs minimal maintenance and has user-friendly operations. We test the OMR Scanner thoroughly before delivering them to the clients. Its flexible design allows for centralized processing or distributed.


  • Simple maintenance
  • Available at a competitive price
  • High performance
  • Minimal maintenance

Technical Specification :

Physical Description

Length: 27.5
Height: 7.5
Width: 13.25
Weight: 34 lbs


Operating Temperature: 60o to 85o degrees F
Humidity: 40% to 60% relative; non-condensating
Heat Dissipation: 900 BTUs per hour nominal


Standard: 115 VAC +/-10% single phase; 60 Hz +/-5%; US 3-prong plug; 8 ft. cable; requires 15 amp dedicated circuit, single phase
Option A: 50 Hz +/-5%; 100 or 110 VAC +/-10%; US 3-prong plug; 8 ft. cable; requires 15 amp dedicated circuit, single phase
Option B: 50 Hz +/-5%; 220 or 240 VAC +/-10%; US 3-prong plug; 8 ft. cable; requires 7.5 amp dedicated circuit, single phase


Asynchronous: Protocol is defined to meet user’s requirements; two female RS232 connections.
Communication Speed: From 1,200 to 115,200 baud.
Host Port: Local or remote connection; cable at no charge when specified by the customer at time of scanner order.
Auxiliary Port: Allows connection of a terminal printer or video display in series with the scanner; cable may be purchased from Scantron
Compatibility: Sentry 3000® scanner emulation mode.
RS232 connection or USB 1.1 or 2.0 connection.
Keyspan USB Serial Adapter recommended, if needed.


2.5” x 5” to 9” x 14” (60-100 lb. Offset); uses both Mark Reflex and Trans-Optic forms.
Form Input Capacity: Auto feed 300 sheets.
Output Stacker Capacity: 300 sheets main stacker.
Controls: Two push button programmable switches.
Message Display: 40 character, alphanumeric, fluorescent.
Scanning Rate: Model 36 - 3,600 sheets per hour; Model 50 - 5,000 sheets per hour (Actual scanning rate depends on quantity of data read from the form and the amount of processing done on that data while scanning).


Read Head: 16 level mark discrimination; self calibrating read head; one or two sided reflective read; Scantron .166” format
Form Transport: Automatic feed; open design

Software Interfaces

The OpScan 6 scanner is compatible with ScanTools® Plus. This software allows you to maintain files and define scannable forms-plus scan, edit, validate and display data. Interfacing with an OpScan scanner into your own custom software solution is done using the ScanTools Plus Link SDK and ScanTools Plus software. These tools are used by software programmers to implement scanning within their own software programs. For added value, the software converts files of scanned data into formats compatible with other commonly used packages, such as Microsoft® Access, Excel, Lotus® and SPSS® software.
